100% Canterbury made 7-year guarantee Galvanised for NZ
Code G001B

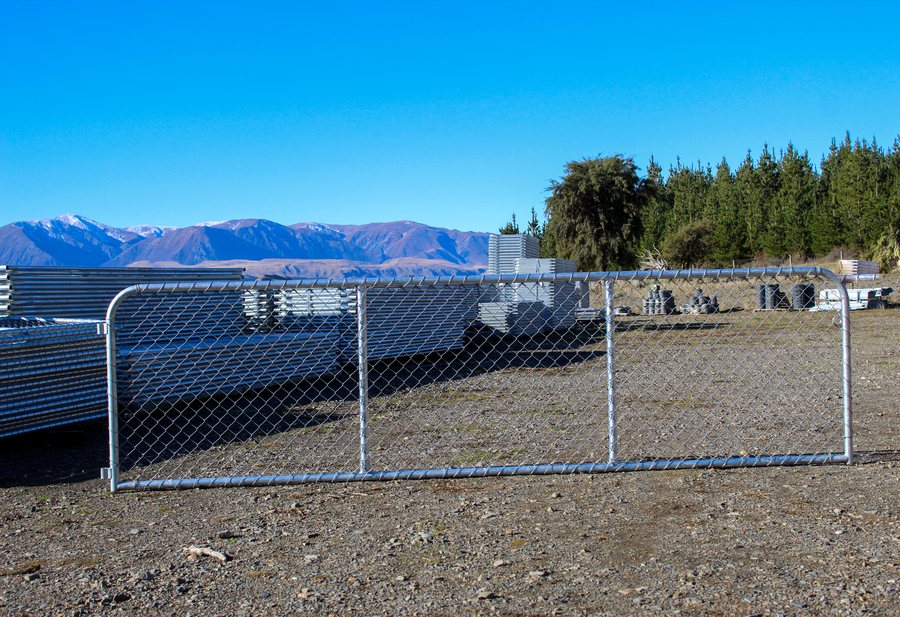

HM12G - Heavy Mesh Gate 3.69m
$278.20 + GST Out of stock
Prices move with the steel market, so we confirm the current price and freight when you order.
Specifications
- Gate frame
- 42OD - Pipe thickness = 2.5mm
- Gate internal uprights
- 42OD - Pipe thickness = 2.5mm
- Gate chain link mesh
- 50mm/50mm/3.15mm galvanised steel wire
- Gate lacing wire
- 2.25mm galvanised steel wire
- Gate hinge lugs
- 2 heavy 50mm by 5mm hinge lugs are fully welded to the frame 700mm apart
- Gate gate latch hook
- This is welded on the inside of the frame, Simply insert the gate chain and close the hook,no wire is required. It is 300mm below the top of the gate.
- Gate height
- 1 metre total including frame
- Gate length
- 3.65m
- Gate galvanized spec
- The entire gate is hot dipped galvanized after welding to a minimum of 500 grams m/2
- Gate weight
- 41kg
