100% Canterbury made 7-year guarantee Galvanised for NZ
Code HB16G

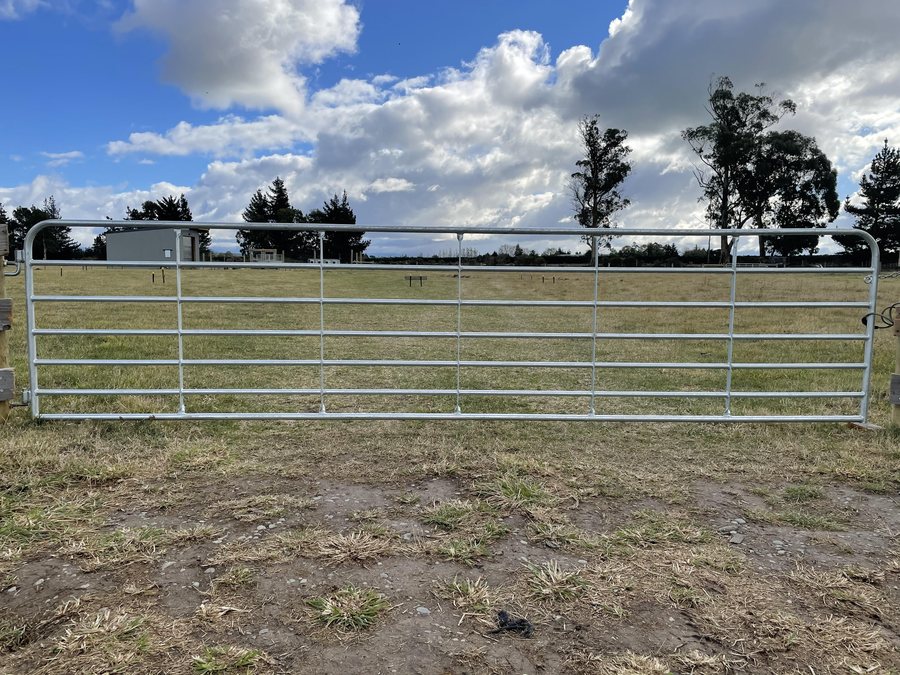

HB16G - Heavy Barred Gate 4.88m
$425 + GST
Prices move with the steel market, so we confirm the current price and freight when you order.
Specifications
- Gate frame
- 32mm OD pipe thickness 2mm
- Gate internal uprights
- 5 x 32/6mm flat steel which are twisted at 90 degrees at the top and bottom and fully welded onto the gate frame
- Gate internal horizontals
- 5 x 25mm OD pipe thickness 2mm. These go through holes drilled in the flat uprights and are then welded for extra strength
- Gate hinge lugs
- 2 x heavy duty hinge lugs fully welded to frame
- Gate gate latch hook
- This is welded on the inside of the frame. Simply insert the gate chain and close the hook, no wire is required
- Gate height
- 1m total including the frame
- Gate length
- 4.84m frame length with the hinge lugs extending out another 45mm. This is an overall length of 4.88m
- Gate galvanized spec
- Hot dipped galvanized after welding to a minimum of 500 grams m/2
- Gate weight
- 58.5kg
